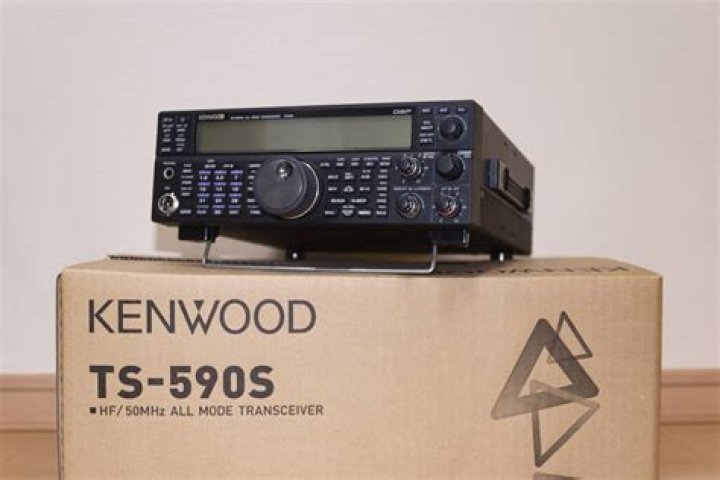

Can a Kenwood ts-590 be used on AM?

Can a Kenwood ts-590 be used on AM?

There’s not much that has to be done to an out-of-the-box Kenwood TS-590S to get decent results on AM. As with most current multi-mode rigs the DSP limits the total transmitted bandwidth to 6 KHz on AM, however, the receiver allows you to listen with a bandwidth of 10 KHz.

What is the HRD COM port on Kenwood ts590 DTS?

Kenwood, TS590 DTS and RTS Take a look at the Com port Tab and see what HRD com port is available. Pick that Com Port (Mine was COM3) select 115200 Baud speed.

What kind of audio codec do I need for ts-590?

Simply select the Kenwood USB audio codec that shows up in the recording list as shown in the picture below and you are good to go for recording whatever you are listening to. To get an idea of how the AM mode sounds with the TS-590S click on the link below to listen to a brief MP3 that I made of an AM broadcast station.

What should the transmit bandwidth be on a ts590s?

Page 32 of the manual correctly states the information regarding the transmit bandwidth, and clearly indicates that 300 Hz and 2700 Hz are simply the default values. Unfortunately, the misconceptions about the transmit bandwidth capabilities of this rig are out there and still propagating.

Is the Kenwood ts590 a good DSP?

Time Owned: more than 12 months. The ts590 has good ergonomics and is pleasant to handle. The reception is good including the selectivity. it is however a pity that kenwood did not update the code of its dsp, in depth, since the ts2000 or even the ts870.

Where is the power ON / OFF button on a ts-590?

The power on/off button on the front panel is not the power on/off button. Think of it instead as the “Operational/Standby” button. When you press the button and the display lights up, the radio is in the fully “Operational” state, ready for normal use. When you press the button again and the display goes off, the radio is in the “Standby” state.

Is the Eham 590 a good radio receiver?

Great radio, very affordable, still stands neck to neck with many radios far more expensive. Have had a couple of 590s in the past and came back to one now. Planning on keeping this one. For the $ spent (typically less than $1100) you get one hell of a receiver with top notch performance.

How to adjust mic Proc on TS-590S?

– Press and hold the PROC button, PRO.I (Proc Input level) is displayed. – Push PTT and speak with normal voice and adjust for no more than 10dB on the COMP meter. You may end up around 40-60%. – Push (short push) on the MIC (MIC GAIN) button, PRO.O (Proc Output level) is displayed. – Press PTT and adjust for around 1/2-scale on the ALC meter.
