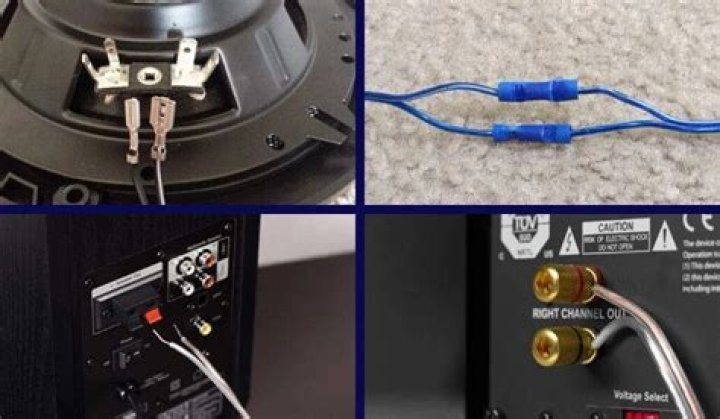

How do you connect a speaker wire to a passive subwoofer?

How do you connect a speaker wire to a passive subwoofer?

The first is to connect the sub to the front left right speaker connections on the receiver (along with the front L/R speakers). The speaker wire will need to have RCA connections at the subwoofer end. In the speaker setup menu of the receiver set the front speakers to large and the sub to none.

Can you wire two sets of speakers together?

There are only really two ways to connect 2 speakers to one amplifier – either in parallel or series. If each speaker has an impedance of 8 ohms or more, then you can generally connect them in parallel.

Why do passive speakers have 2 inputs?

Manufacturers include dual-input terminals so that consumers can bi-wire their home theater systems, improve audio fidelity and create a fuller sonic landscape. The default setting for many home theater setups is to run one dedicated cable from the amp to each speaker.

Can you connect a passive subwoofer to an active speaker?

No, it can not. Like almost all, the sub has two sets of inputs to allow it to accept either line level or speaker level input signals. The “speaker out” you see, is just a bypass from the hi level inputs so you can run the wires that come from a stereo amplifier, through the sub and then to the speakers.

Can you daisy chain passive speakers?

Yes, you can daisy chain any speaker that has an “extension” or “through” outlet on some models to a passive speaker. If the model is compatible with this practice, just run a cable from that connection to the input of the next speaker and you’ll feed audio and power to it.

How can I connect a passive subwoofer to a receiver?

Instead, the company suggests the following steps: Connecting your passive subwoofer to an external amplifier. Using the subwoofer pre-out slot. Connecting your AV receiver to the input of the amplifier. Alternatively, you can also try connecting your passive subwoofer right where you would connect your speakers on the receiver.

What kind of wire do you need for a subwoofer?

How to bridge the amp is usually indicated at the amp’s speaker wire terminals. All the wires depicted in the Subwoofer Wiring Diagrams are speaker wires. For wiring subwoofers, we recommend using wires of 12- to 16-gauge in size.

What’s the difference between a passive and Active Subwoofer?

The term passive subwoofer correctly implies that there are no internal amplifiers and therefore external ones would need to be connected. Subwoofers are used primarily for low-frequency sounds and improving the bass quality of your speakers. The size of your room will determine the subwoofer’s size — the bigger the room the bigger the subwoofer.

What’s the difference between single and dual voice coil subwoofers?

Single voice coil subwoofers have only one speaker voice coil winding while dual voice coil models have a 2nd voice coil of the same Ohm rating (impedance) added in the bobbin. A 2nd pair of wire leads and speaker wire terminals are added, too.

Is there such a thing as a passive subwoofer?

Subwoofers have undergone some serious change in the past decade. Intitially, most subwoofers were passive. A passive subwoofer does not have its own amplifier built in, and is therefore connected with speaker wire between the front or all speakers.

How to connect subwoofer to receiver with speaker wire?

You have to set all of the speakers in a line throughout the whole room from one front speaker to the other one. Don’t interface the front via the speaker wires. Connect them using AV cables. Now, connect your subwoofer to the receiver with speaker wires. Interface the subwoofer to the subwoofer port on your receiver.

How does a passive speaker hook up to a receiver?

Passive or powered subs that connect to the front left and right speaker lines should have the fronts set to “large”, center and surrounds to “small”, and the sub set to “no”. The front left and right speakers will plug into the sub, not the receiver.

How is the Bose subwoofer connected to the receiver?

In many Bose speaker systems, the bass module is connected to all of the speaker wire outputs on the back of the receiver, and all the Bose satellite speakers are connected to the bass module. Most people using size logic set all the speakers in the receiver to “small”, and subwoofer to “yes”.
