How do you make a strong retaining wall?

How do you make a strong retaining wall?

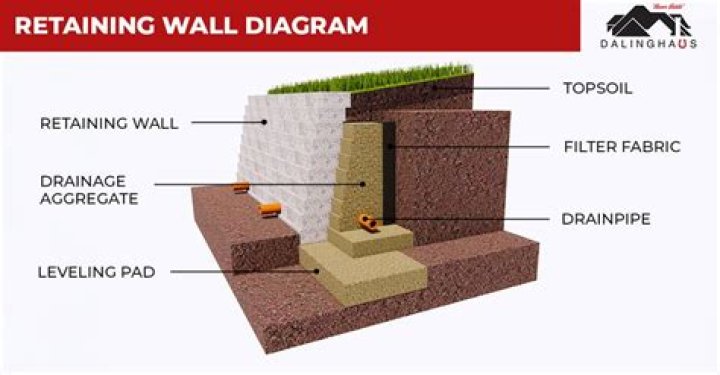

Here are three key principles in building any solid retaining wall:

1. Bury the bottom course, or courses, of the retaining wall one tenth the height of the wall to prevent the soil behind from pushing the bottom out.
2. Step back the blocks, rocks or timbers to get gravity working in your favor.

How deep should a footer be for a retaining wall?

Concrete retaining wall footing size The depth to the bottom of the base slab should be kept at a minimum of two feet. However, it should always be below the seasonal frost line, and that often is much deeper in northern climates.

How thick do retaining walls need to be?

Base thickness = 1/8 of the height of the wall but not less than 12 inches. Stem thickness = 6 inches + ¼ inch for each foot of wall height. Stem located on base so that 1/3 of total base width projects forward from the face of the stem.

How big of a Jack do you need to lift a house?

Movers may use larger jacks but four 12-ton bottle jacks should lift most homes. Bottle jacks stand about 1 foot tall and extend less than that. Often a support structure is required. Place two 4-by-4 or 6-by-6-inch beams parallel to each other about 24 inches apart.

How to build a stackable block retaining wall?

If your wall goes across a slope, you can dig a series of stepped trenches so that only one course of blocks is below ground. Tamp down the bottom of the trench using a soil tamper. Add several inches of sharp gravel or rock dust to the bottom of the trench, and use this layer to do your final leveling and tamping.

How does gravity affect the height of retaining walls?

You must also consider that gravity will cause the retained material to naturally move downslope. This should be counteracted within the design to minimize the amount of lateral earth pressure behind the wall, which, at maximum value, can ultimately overturn the wall. Your wall height is dependent on soil and slope]

How long does it take to build a retaining wall?

Retaining walls can be a great way not only to help with erosion and water drainage, but also to create beautiful, usable garden space. And thanks to interlocking, stackable blocks, the project can be completed in a weekend.

Can a retaining wall be built without footing?

The path of least resistance is to knock over the wall. Blocks, attached with mortar, to the soil behind the wall about as strong as a 2×10 resting on its edge. The question is more one of how many yards of concrete will you need to build the footing. Thanks for the comment. I did get quite a few quotes. They ranged anywhere from $4,000 to $7,000.

How big does a brick retaining wall need to be?

Blocks work because they are tied to very solid, heavy things at the top and bottom that run the length of the wall, and have regular supports at a right angle to the length of the brick. A 1′ deep pile of soil, behind a 4′ block wall, 1 block long, weighs 500 pounds.

Do you need a 45 degree back slope for a retaining wall?

– Tyler Durden Mar 16 ’15 at 23:46 Speaking as a structural engineer, the wall does not have to have a 45 degree back slope. It’ll give you a nice robust wall, sure, but there are other ways to build a wall. Rebar is one of them. – AndyT May 23 ’17 at 14:58

How much lean should I put on my retaining wall?

Put 1/16″ lean on your base course per layer of block. So your 4′ wall should have about a half inch of lean to it. An easier way to achieve this is the bubble on your level should be split in half by the line facing the front of your wall.
