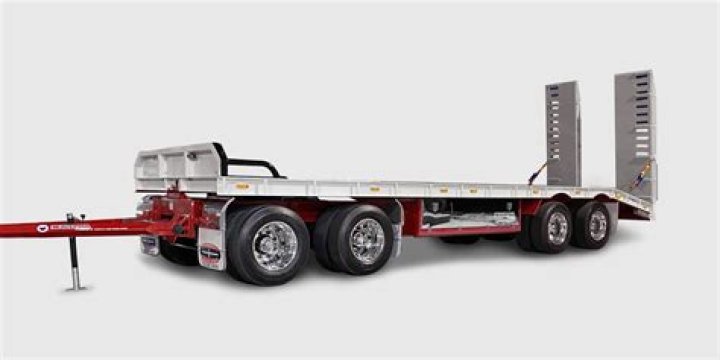

How much weight can a quad axle trailer hold?

A quad-axle group semi-trailer can have a gross combination mass of up to 50 tonnes (or 50.5 tonnes).

How many tons can a tri axle dump truck hold?

The average tri-axle dump truck is limited to about 15 tons of payload each trip, in accordance with the federal bridge law as well as most state bridge laws. The Super Dump, on the other hand, can haul up to 26 Tons of payload each trip.

How many ton can a dump truck carry?

14 tons
On average, large dump trucks can carry roughly 28,000 pounds or about 14 tons. Smaller dump trucks can manage about 13,000 pounds to 15,000 pounds or 6.5 to 7.5 tons. Dump truck pricing can vary widely, so it’s important to consider your needs carefully.

How much can a 7 axle dump truck haul?

This means there are 7 axles in total, spread out over 34 ft. This means it qualifies to carry the maximum gross weight allowed on the interstate: 80,000 lbs! The body of the Super Dump has been rigorously engineered to dump easily and quickly with all unnecessary weight eliminated.

How much weight can you put on a tri-axle trailer?

17,000 kg
The maximum weight for a tridem axle on a municipal road is 17,000 kg. Permits may be available to achieve heavier weights. 17,000 kg for a two axle group or 23,000 kg for a three axle group.

How high can a trailer be loaded?

In general, the maximum legal load width is 8.5 feet (102 inches), and the maximum height limit is also 102 inches. Legal length is typically 48 to 53 feet, and the maximum weight is about 46,000 pounds.

What is the max weight on the drive axle and trailer axle?

General Rule. 35550. (a) The gross weight on any one axle shall not exceed 20,000 pounds, and the gross weight upon any one wheel, or wheels, supporting one end of an axle, shall not exceed 10,500 pounds.

How much weight can a 3500 axle carry?

7,000 pounds
The carrying capacity of two 3,500 pound axles is 7,000 pounds. The axles support not only the cargo’s weight but also the weight of the trailer’s frame and body.

How big is the trailing axle on a dump truck?

A super dump is a straight dump truck equipped with a trailing axle, a liftable, load-bearing axle rated as high as 13,000 pounds (5,897 kg). Trailing 11 to 13 feet (3.35 to 3.96 m) behind the rear tandem, the trailing axle stretches the outer “bridge” measurement—the distance between the first and last axles—to the maximum overall length allowed.

How big can a quad axle group truck be?

Safer and more efficient vehicles are the best option to meet future growth in the road freight task. A quad-axle group semi-trailer can have a gross combination mass of up to 50 tonnes (or 50.5 tonnes). Proposed maximum axle group loads are: quad axle group – 27 tonnes.

What’s the maximum load for a quad axle semi?

77.0 tonnes (or 77.5 tonnes) if two quad-axle groups are fitted. Proposed maximum axle group loads are: quad axle group – 27 tonnes. ‘Blueprint’ designs for quad-axle semi-trailers and B-doubles have been pre-approved to Performance Based Standards and made available to the heavy vehicle industry.

What’s the maximum weight for a dump truck?

The maximum total weight allowed on any two consecutive axles spaced eight or fewer feet apart (like tandem axles) is 34,000 lbs. The maximum allowed Gross Vehicle Weight (GVW), or the maximum allowed total weight on any group of consecutive axles on a vehicle, is determined by the Federal Bridge Formula (FBF).

How much can a quad axle dump truck haul?

They can haul around 22 to 24 tons. The weights they can carry are somewhat limited by the government bridge weight limits set to minimize large trucks’ impact on roads and infrastructure. A fully-loaded quad-axle dump truck might weigh about 36 tons altogether.

How much dirt can a quad axle dump truck haul?

Quad axles dump can haul 16 yards of soil, 30 yards of mulch and 20 tons of gravel or sand. The six axle dump can haul 18 yards of soil, 40 yards of mulch, and 22 tons of gravel or sand.

What is the capacity of the average dump truck?

Typically, larger dump trucks can carry about 28,000 pounds or about 14 tons. On average, smaller dump trucks can transport around 13,000 to 15,000 pounds or 6.5 to 7.5 tons. Dump Truck Inventory Specialized Commercial Vehicles What is a Cubic Yard?

How much can a tri-axle dump hold?

When it comes to gravel, an ideal average is about 3,000 lbs per yard. A dump truck (pickup truck sized) can carry 1 yard and three-axle dump truck can carry about 16.5 yards of gravel. Always make sure to check the truck owner’s manual for exact weight capacity.
