How many volts do I need for a ta7222 IC?
By Eleanor Gray

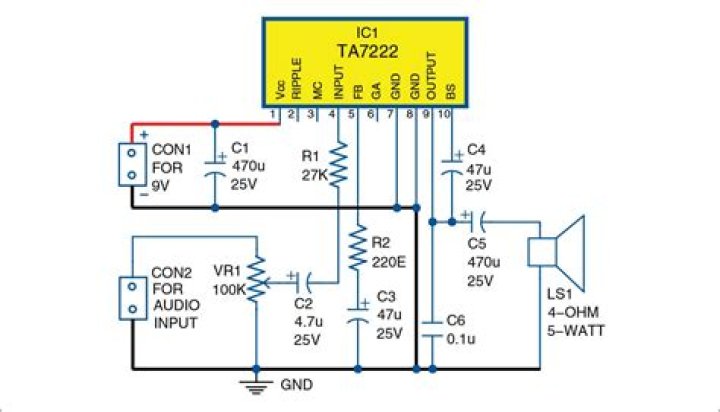

How many volts do I need for a ta7222 IC?
This IC was commonly used as the audio amp in many CBs. The Ta7222 can power a 2ohm load safely, but don’t use more than 14 volts supply. You can use up to 18V with a 4 ohm or higher load. A 2 ohm load would need 1500mF or more output cap (C6) to deliver full bass.
How many Watts Does a taramps 2 ohm amplifier have?
Taramps TS 400×4 4 Channels 400 Watts RMS Amplifier The TS 400×4 2 OHM amplifier was developed with the highest technology and performance for automotive sound systems. It is multichannel, with 4 channels of 100 Watts RMS, with a maximum power of 400 Watts RMS and with an impedance of 2 ohm.
How many transistors are in a ham AMP?
MESSENGER 10m HAM AMP, LINEAR AMPLIFIER VERY NICE 2 1446 Transistors. Brand New! MESSENGER 10m HAM AMP, LINEAR AMPLIFIER VERY NICE 1446 Transistors. Brand New! MESSENGER 10m HAM AMP, LINEAR AMPLIFIER VERY NICE 2 455 Transistors Brand New! Only 1 left! Only 1 left! 15FT LINEAR AMPLIFIER Power Cable 10 Meter Radio Ham Amateur Radio Linear Amp.
How many Watts Does a taramps TL 500 amplifier have?
Taramps TL 500 2 Channels 90 Watts RMS Amplifier The TL 500 amplifier module was carefully developed with highest technology, offering high efficiency and performance for automotive audio systems. Classified as Stereo, it has a maximum power of 90 Watts RMS, running at a 2-ohm impedance, with two 2x 45 Watts RMS channels.
How is the efficiency of a transistor amplifier determined?
When the transistor switches “ON” it sinks the output current through the Collector resulting in an inevitable voltage drop across the Emitter resistance thereby limiting the negative output capability. The efficiency of this type of circuit is very low (less than 30%) and delivers small power outputs for a large drain on the DC power supply.
How big is a TDA1517 stereo power amplifier?
A full-fledged stereo power amplifier with the TDA1517 chip. It is powered by single voltage, achieves 2×6W output power at 4 Ω load. The whole is designed as a small module with dimensions of 30mm × 38mm, which “will fit anywhere”. The TDA1517 amplifier module can be used in self-made sound equipment or mounted in
How is the output of a common emitter amplifier chosen?
The Common Emitter Amplifier circuit has a resistor in its Collector circuit. The current flowing through this resistor produces the voltage output of the amplifier. The value of this resistor is chosen so that at the amplifiers quiescent operating point, Q-point this output voltage lies half way along the transistors load line.
What are the efficiencies of a Class A amplifier?
By using an output or signal transformer with a suitable turns ratio, class-A amplifier efficiencies reaching 40% are possible with most commercially available Class-A type power amplifiers being of this type of configuration.
